Teflon Double Diaphragm Pump Cast Iron Stainless Steel For Food QBY Series

Name: Teflon Double Diaphragm Pump Cast Iron Stainless Steel For Food QBY Series
Brand: Yuzhou
Price: 1 USD

China Teflon Double Diaphragm Pump Cast Iron Stainless Steel For Food QBY Series wholesale

Brand Name : Yuzhou

Model Number : QBY

Certification : ISO/SGS/CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500 sets per month

Delivery Time : 2-5 working days

Packaging Details : plywood case package

Product name : Air Operated Diaphragm Pump

Structure : Diaphragm Pump

Usage : Oil and chemical

Material : Cast Iron, Stainless Steel 304 316, Plastic

Diaphragm Material : NBR, PTFE, Telfon

Warranty : 1 Year Warranty(except Wearing Parts)

Contact Now

QBY Series Cast Iron, Stainless Steel, Teflon Air Operated Double Diaphragm Pump for Food, Oil and Chemical

Pneumatic Diaphragm Pump

1.air operated double diaphragm pump for Food& Chemical, Chemical Resistant Diaphragm Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.

3. QBY air operated double diaphragm pumps not only can transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.

Working Principle:	Double diaphragms, pneumatic
Main applications:	Oil, water, chemical, etc.
Driver:	Air operated
Max.permissible fluid temperature:	150°C(302°F)
Type of connection:	Flange, thread, quick coupled
Installation position:	Connect to compressor
Casing parts material:	C.I, S.S, PP, Aluminium
Maximum grain diameter:	10mm(3/8inch)
Maximum drive rating:	7kgf/cm2
Maximum caliber:	100mm(4inch)
Maximum discharge-side pressure:	6kgf/cm2
Maximum head:	50m(164ft)
Flow rate range:	0.8-30m3/h(3.5-132US.GPM)

Product Use

Pumped peanut butter, pickles, mashed potatoes, apple pulp small sausage, fruit jam, chocolate, etc.
Pumped paints, rubber, paint.
Glue and glue, and all kinds of available drain pump.
All kinds of tiles, porcelain, tiles, and pottery glaze slurry.
Oil drilling, pump suction sediments and grouting.
Various emulsion pump suction and packing.
Pumped all kinds of wastewater.
Pump for oil tankers, barges clearance drain sewage in warehouse.
Hops and yeast slurry, syrup, sugar.
Pumped mine, tunnel, tunnel, ore dressing, slag in water.Pumped cement grout and mortar.
All kinds of rubber slurry.
All kinds of abrasive, corrosion inhibitor, oil and mud, cleaning oil dirties and general container.
All kinds of highly toxic, flammable, volatile liquid.
All kinds of strong acid, strong alkali, strong corrosive liquid.
All kinds of high temperature liquid up to 150 ℃.
All kinds of solid liquid separation equipment level before sending pressure device

Technical parameters:

Model	Dia(mm)	Flow (m3/h)	Head (m)	Suction (m)	Max Particle Size φ(mm)	Air Pressure (kgf/cm2)
QBY-10	10	0.8	50	5	1	2-7
QBY-15	15	1	50	5	1	2-7
QBY-25	25	2.4	50	7	2.5	2-7
QBY-40	40	8	50	7	4.5	2-7
QBY-50	50	12	50	7	8	2-7
QBY-65	65	16	50	7	8	2-7
QBY-80	80	24	50	7	10	2-7
QBY-100	100	30	50	7	10	2-7

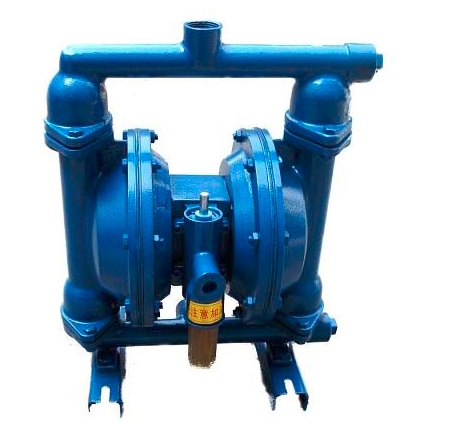

Teflon Double Diaphragm Pump Cast Iron Stainless Steel For Food QBY Series
